Profile Cutting - CNC Plasma Cutting Machine, CNC Plasma Cutter, CNC Plasma Table |
| AutoKut from SEC is gantry type robust CNC profile cutting machine. |
| It has a rugged gantry design for optimum performance in a wide range of processes including OxyFuel as well as for Plasma Cutting. |
| SEC provides choice and options that allow you to configure a gantry system with capacity and options you need for your applications. |
| It combines powerful performance with multiple torch carriage flexibility to deliver high productivity of ultra accurate shapes such as circles, rectangles, stars, hexagons or any shape your creativity can conquer. |
| AutoKut’s uses the best and most reliable “SEC” controller and drive system.
It comes with state-of-the-art anti surge function. The drives are fitted with
DC super Stepper motors with zero backlash drives. It can also be supplied with AC Servo Motors with zero backlash Planetary Gearboxes |
| The cut quality and accuracy are dependent on smooth precise motion control on both the axes. You get the best when you choose SEC's AutoKut CNC plasma cutting machine. |

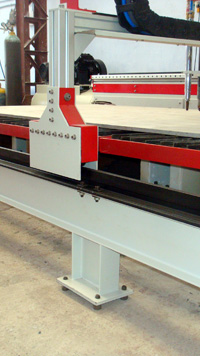

| AutoKut has Heavy duty precision machined caged ball Linear Bearing Guides supplied for long life and vibration free very precision motion movement. |
| The Gas Control System is designed for efficient and safe gas control. |
| The gas panel is mounted on the machine for easy operation. |
| Hi-Lo preheat control is provided as standard. Cutting Oxygen vent-off valve is provided for safety. |

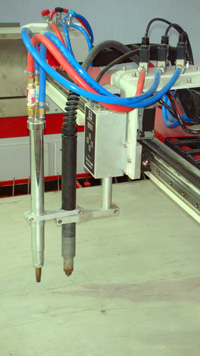

| Torch Stations
Manual cum Motorized torch stations are available as optional. Auto Ignition, Auto Height sensing, Plate marking are other optional features. Choice of injector type and Nozzle mixing type cutters are available to use with standard and high-speed nozzles. |
| Plasma cutting possible .CNC plasma cutter is plasma ready. Various plasma equipment options including CNC plasma table are available for individual needs. The machine can also be supplied with Arc Voltage Height Controller. |
Benefits
| 1 | The Machine is the blend of best of PC and PLC Control Technology. The Software Runs on PC and the Machine runs on PLC. The Software generates G Codes which is taken in a USB pen and transferred to Machine where the PLC controller displays the drawing and does the cutting operation…. due to this the machine is always safe from viruses and windows crashes and registry problems…. This is the major issue in a PC based run machine controller. |
| 2 | The Machine is blend of World Best technology: Controller : MicroTek …. USA Linear Bearings : THK …. Japan Nesting Software : IBE ….. Germany Oxy Fuel D7 NM : Koike … Japan Plasma Power Source : Hypertherm …. USA Plasma Power Source : Kjelberg ….. Germany Machine Structure : SEC Machines … India Guarantees and After Sales : SEC Machines … India |
| 3 | Low Power Consumption and very Safe system : The Machine runs on just 1 Phase 230V 50Hzs and consumes hardly 3.5 Amps. It has inbuilt Earth Leakage Circuit Breaker , Overload Circuit Breaker , Voltage Stabilizer , Uninterrupted Power Supply and All Shut Emergency Switch. |
| 4 | Unique Start from Same Point Feature : In event of Emergency Shut Off or Power Failure the Machine can start from the same point where it stopped and can even be jogged back and front on the line of cut. |
| 5 | Lesser Chance of Breakdown than any other CNC Machine. AutoCut does not run Windows PC , no viruses , no registry errors , no adwares , no malwares , no missing files due to softwares deletion and no pirated softwares problems … major breakdowns of CNC Machines are due to the above mentioned factors only. |
| 6 | Higher Accuracy plus minus 0.5mm and Reliability AutoCut has inbuilt Electronic Gearing calibration system , this enables any mechanical errors to be corrected digitally . AutoCut is very accurate and gives reliable superior accuracy years after years and this feature is possible due its Unque unmatched Electronic Gearing Technology. |
| 7 | Comes with Rock Solid Guarantees 15 Months on Site Warranty even for the Electrical Components 3 years Warranty for Hypertherm Plasma Power Source India’s Best Elgi fully Guaranteed Air Compressor. |
| 8 | Saves Scrap upto 30% Due to World Renowned Automatic True Shape Nesting Software from Germany. |
| 9 | Cuts 26% Faster ………. Saves 25% Gas Comes with World Famous Japanese Divergent High Speed NM Oxy Fuel Technology Ultra Safe due Nozzle Mix System … no more backfires in Torch and Hoses The Nozzles last 5 times longer and gives very good cut quality. |
| 10 | Backed by 20years of your Local Experience and Credibility. SEC is more than 20 years in Cutting Machines Manufacturing and has large List of Satisfied Customers and its list consist of customers like L&T , Thermax . Railways and Govt Departments. |
Specs
| Max Profiling Speed | 4000 mm/min |
| Traverse Speed | 8000 mm/min |
| Machine Accuracy | As per Din Standard |
| Repeatibility | As per Din Standard |
| Bearings | Caged Ball LM Guide Bearings |
| Beam | Industrial Ultra Staright and Robust Aluminium Extrude Section. |
| Drive system | Rack and Pinion with Electronic Correction Facility. |
| CNC | Industrial Grade Arm Chip PLC Controller. |
| Drives | Dual Drive Stepper or AC Servo |
| Kerf Compensation | 0 to 10 mm |
| Effective Cutting Width | 1500mm ( also 2000mm , 2500mm , 3000mm, 3500mm ) |
| Effective Cutting Lenght | 3000mm ( also 4000mm , 5000mm , 6000mm, 8000mm ) |
| Machine Width | 2200 mm |
| Machine Lenght | 3700 mm |
| Material Thickness Oxy Fuel | 5mm to 150mm |
| Material Thickness Plasma | 0.5mm to 10mm ( also 12mm,15mm,20mm,25mm ) |
| Torch Station | 1 Plasma , 1 Oxy Fuel ( more possible ) |
| Plasma Compatibility | Yes |
| Power Input | 230/240 VAC - 50 Hzs |
