Ostrich 1300 is a Professional , Tough and Durable Profile Cutting Machine . This non tiring machine has to be foundation mounted and can be used in multiple shifts for large Production Application.
A Magnetic Racing Roller which moves around a Tin Sheet Template makes the cutting Torch cut the exact shape with perfect accuracy.
Ostrich 1300 can cut Mild Steel and Low Alloy Carbon Steel with Oxy Fuel the Machine can also be used for Plasma Application to cut Stainless Steel and Aluminium.
The Machine can cut from 5mm to 200mm Plate thickness with Oxy Fuel and Plasma thickness depends on Power Source.
The Machine can cut any complex shapes like Flanges , Stars , Hooks , Elipse , Triangles or even Circles , Squares , Rectangles and even Staright Lines.
The Machine can cut any shape from 20mm dia to 1300mm square .
The Machine runs on just single phase 230V power and consumes very less electricity.
Ostrich 1300 can be supplied with Injector Mix or Nozzle Mix or Victor Compatible Torch.
It can be supplied with Electro Magnet Tracing System or Permenant Magnet Tracing Head.
The Machine is very popular in Indian Fabrication Industry and is used by small workshops to Large Ship Fabricators.
Ostrich 1300 comes with SEC's rock solid warranty , it is warranteed for 15 months and the warranty covers electrical components also.
1 It is an all Aluminum Hinge, Right handed machine --- Ease of operation.
2 It can be used with Oxy Fuel as well with Plasma --- 2 in 1 machine
3 Its Repeatability accuracy is plus minus 0.7mm --- Equivalent to CNC Machine
4 It does not have any PCBs.--- No Electronic Burnouts
5 It can be supplied with NM/Ox weld or Victor nozzle system – International Standard
6 It can also be supplied with Permanent Magnet Tracing head – Magnet warranty 3 Years.
7 It is a 95% Mechanical machine - Negligible Maintenance, Seldom Breaks down
8 Large Speed Range – from 70 mm/min to 3000 mm/min.
9 It has tracing roller up and down lever – Enables flange cutting in single setting.
10 It has X and Y axis (Dual) slide mechanism – enables quick job setting, faster production.
11 Its cutting table can also be mounted in a pit — Plate loading becomes very convenient.
12 Machine can also be supplied with Plate Keeping Table Drawing – You can Fabricate the Table on your own and save money.
13 It is supplied with detailed Pictorial Spares selection chart – Easy Spares Identification.
14 Excellent After Sales Service – Indigenous Spares always available Ex stock.
15 SEC has more than 1000 satisfied users in India and Abroad.
16 Manufactured under ISO 9001 certified quality system.
17 It is guaranteed for 15 months -- even for electrical component.
Cutting Capacity Any shape up to 1300mm dia.
Max. Straight Cut 1500mm in length
Cutting Speed 60mm/min to 3000mm/min
Power Supply 220/250 Volts AC. 50 Hz
Motor 1/20HP.AC/DC. SeriesFHP
Speed Control Variable by Disc Knob
Maximum Current 1 Amps
Fuse Bottle Type 1 Amp
Tracer Movement Clockwise/Stop/Anticlockwise.
Torch Injector Type/ NM/Victor
Torch Holder Rack and Pinion (Vertical)
Hose Connection 3/8’’ G( Fuel Gas LH & Oxygen RH )
Dimensions 1270mmx1320mmx1830mm
Gross Weight 325 Kgs. [Approx.]

Packing List - Standard Accessories

Ostrich 1300 Ist Main Hinge - 1 Set.
Ostrich 1300 2nd Hinge - 1 set.
Small Slide Unit - 1 No.
Small Fixed Spanner - 1 No.
Big Fixed Spanner - 1 Nos.
Adjustable Spanner - 1 Nos.
Nozzles - 3 Nos.
Nozzle Cleaner - 1 No.
Fuses - 6 Nos.
LN Key - 7 Nos.
Machine Torch with Nozzle - 1 Nos
Torch Holder - 1 No.
Template Bolt Unit - 4 Nos.
Tracing Roller - 2 Nos.
Nut Bolts Sets - 3 Nos.
Locking Lever Set - 1 No.
Machine Base - 1 Nos.
Pillar Pipe - 1 No.
CI Rings - 3 Nos.
Pipe Mounting Unit - 1 No.
Long Slide Mount Unit - 1 No.
ostrich


Actual Machine Dimension and Net Weight

Machine 1270mm x 1320mm x 1830mm 325 Kgs

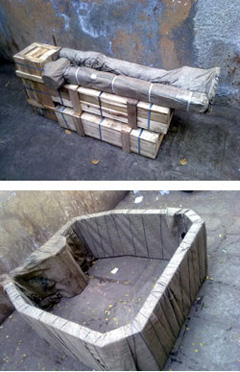

Wooden Box Packing Dimension and Gross Weight

Pkg 1 127cms x 61cms x 24cms 55 Kgs
Pkg 2 142cms x 41cms x 23cms 85 Kgs
Pkg 3 91cms x 34cms x 32cms 46 Kgs
Pkg 4 127cms x 122cms x 48cms 105 Kgs
Pkg 5 130cms x 30cms x 28cms 52 Kgs
Pkg 6 140cms x 30cms x 28cms 53 Kgs
Total Volume 1.37 Cu Mtrs 396 Kgs
